Low Carbon Steel 14-50mm High Precision Welded Pipe Mill Line

Produktdetails:

Herkunftsort:	CHINA
Markenname:	tengtian
Zertifizierung:	BV,CE, ISO
Modellnummer:	50

Einzelheiten

Herkunftsort:

CHINA

Markenname:

tengtian

Zertifizierung:

BV,CE, ISO

Modellnummer:

Produktname:

14–50 mm hochpräzise geschweißte Rohrmühlenlinie aus kohlenstoffarmem Stahl

Material:

niedriger Kohlenstoffstahl

Durchmesser:

14 bis 50 mm

Dicke:

10,6-2,5 mm

Geschwindigkeit:

30-130 m/min

Schneiden:

1-4 Millimeter

Leistung:

630KW

Stichwort:

Schweißrohrmühle

Hervorheben:

High Light

Hervorheben:

low carbon steel welded pipe mill

high precision welded pipe line

14-50mm welded pipe mill line

Handelsinformationen

Min Bestellmenge:

1 Set

Preis:

$100000 to $1 million

Verpackung Informationen:

Kunststofffolienwicklung, Holzgehäuse für elektrische Bauteile

Lieferzeit:

90 Tage

Zahlungsbedingungen:

L/c, t/t

Versorgungsmaterial-Fähigkeit:

25 Linien pro Jahr

Produktbeschreibung

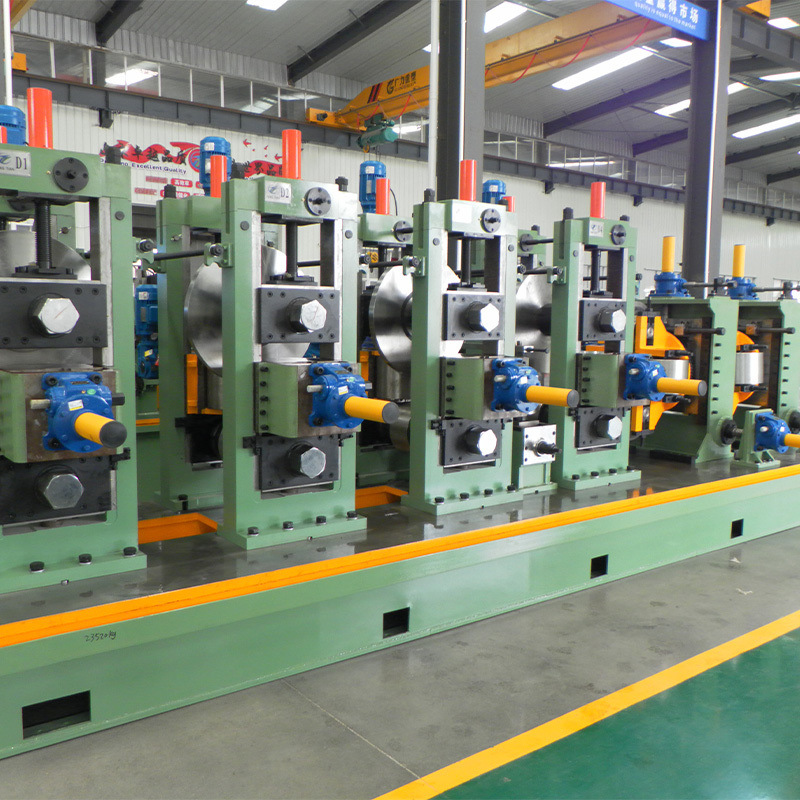

Low Carbon Steel 14-50mm High Precision Welded Pipe Mill Line

Product Specifications

Attribute	Value
Product Name	Customizable High Precision Pipe Line
Material	Low carbon steel
Diameter	14-50 mm
Thickness	1.6-2.5 mm
Speed	30-130 m/min
Cut	1-4 mm
Power	630kw

Product Description

The Φ50 high-frequency welded pipe production line is designed to produce welded pipes of 16-50mm in diameter and 0.6-3.25mm in wall thickness, as well as square and rectangular pipes and formed sections of corresponding sizes. The products conform to BS/ASTM standards.

Incorporating the advantages of similar domestic and international equipment, each element of the production line features innovative design. The application of German pass technology, PLC automatic control system, and British Eurotherm digital speed regulating unit ensures reliable operation and easy maintenance. As a top-performing system in its class, this production line rivals the most advanced systems worldwide.

The production line has achieved excellent domestic sales and has been exported to several Southeast Asian countries, receiving high customer satisfaction.

Technical Specifications

Uncoiler
Type	Double cone
Steel coil	≤ 2 Ton
ID	480mm-600mm
OD	1800mm
Width	150mm

Accumulator
Material	Welded Angle steel
Feeding Speed	≥300m/min
Capacity	≥380mm
Motor	2.2kw

Forming Machine
Main motor power	2x55 kw
H.F. Power, kW	200KW
Forming stand	6 horizontal, 6 vertical
Sizing stand	6 horizontal, 6 vertical

Frequently Asked Questions

Q1: Are you manufacturer or trading company?

A1: We are manufacturer with more than 20 years experience.

Q2: What is the max size of pipe you have ever produced?

A2: Maximum φ630mm.

Q3: Can I visit your customer machine line?

A3: Yes, but we need to get agreement from our customer first.

Q4: What are your machine advantages?

A4: Features include full automation, direct forming square, shared rollers, and fast change system.

Q5: How can I get the quotation?

A5: Please send your pipe size and thickness requirements to us.
