Q235 Carbon Steel Pipe Making Machine for Round Pipes 219mm

Name: Q235 Carbon Steel Pipe Making Machine for Round Pipes 219mm
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG219
Price: 50,000.00 USD
Availability: InStock

Produktdetails:

Herkunftsort:	CHINA
Markenname:	TengTian
Zertifizierung:	BV,CE,ISO
Modellnummer:	HG219

Einzelheiten

Herkunftsort:

CHINA

Markenname:

TengTian

Zertifizierung:

BV,CE,ISO

Modellnummer:

HG219

Produktname:

Q235 Rohrmacherei aus Kohlenstoffstahl für runde Rohre

Fläche:

Q235

Durchmesser:

219 mm (max.)

Dicke:

6 mm

Länge:

6-9M

Gewicht:

8 Tonnen

Schneidemaschine:

Warmsäge

Ausfalltabelle:

18 m

Schlüsselwort:

Maschine zur Herstellung von Kohlenstoffstahlrohren für Rundrohre

Hervorheben:

High Light

Hervorheben:

Q235 carbon steel pipe machine

round pipe making machine 219mm

steel pipe machine with warranty

Handelsinformationen

Min Bestellmenge:

1 Satz

Preis:

$100000 to $1 million

Verpackung Informationen:

Kunststofffolienwicklung, Holzgehäuse für elektrische Bauteile

Lieferzeit:

150 Tage

Zahlungsbedingungen:

L/c, t/t

Versorgungsmaterial-Fähigkeit:

21 Stück pro Jahr

Produktbeschreibung

Q235 Carbon Steel Pipe Making Machine For Round Pipes

Product Specifications

Attribute	Value
Product Name	Q235 Carbon Steel Pipe Making Machine For Round Pipes
Coil	Q235
Diameter	219mm (max.)
Thickness	6mm
Length	6-9M
Weight	8 Tons
Cutter	Hot saw
Runout Table	18M

Product Description

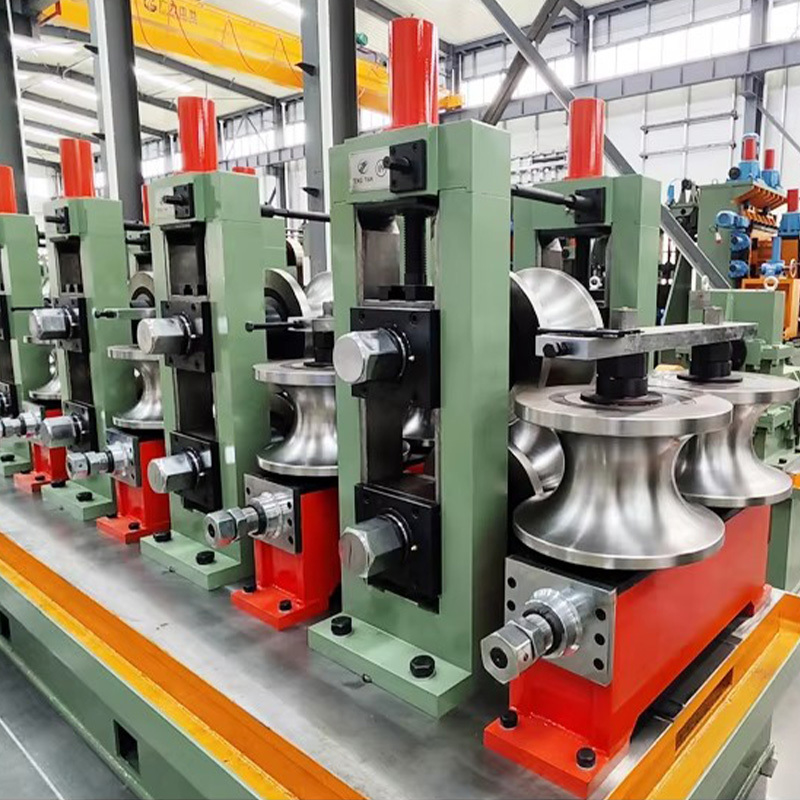

This Q235 Carbon Steel Pipe Making Machine is designed to produce high-quality welded steel pipes, including round, square, and rectangular pipes. Featuring advanced roll pass design, the production line ensures precise machining and high-quality assembly.

Material Specifications

Standard: Conforming to YB189-64 standard
Material: Low carbon steel and low alloy steel, Q235
Strip Width: 320-700mm
Strip Thickness: 1.5-6.0mm
Inner Diameter of Coils: φ470～φ510mm
Outer Diameter of Coils: Φ1000～φ1800mm
Coil Weight: ≤8T

Pipe Specifications

Pipe Size:
- Round Pipe: ø89-219mm
- Square Pipe: 80x80 - 175x175mm
Thickness: 1.5-6.0mm
Length: 6m
Forming Speed: 20-50 m/min

Buyer-Supplied Requirements

Total capacity: Around 850 kw
Circulation Cooling Water (whole system):
- Flow: 20T/h～30 T/h
- Pool Volume: 30m³
Compressed Air (whole system):
- Flow: 5m³/min
- Pressure: 5-7kg/㎡
Cable: All cables outside of the machine must be purchased after machine installation

Note: We typically send 2-3 engineers to perform installation and commissioning. The buyer is responsible for providing round-trip tickets, food & accommodation, local transportation, and a technical service fee of $150 per day per engineer.
